TEMPLATE SYSTEM

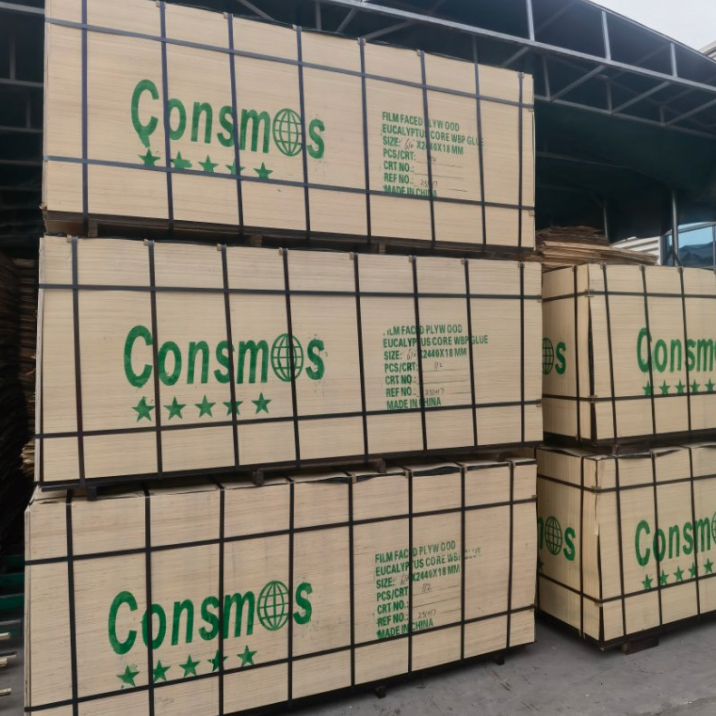

CONSMOS 5 STAR FILM FACE PLYWOOD
Product | Film faced plywood | Core | Birch+Hardwood Combi core /Full hardwood core | |||||
Film | Dynea Brown/Black film | Film Grammage | 120g/m2 | |||||
Size | 1220*2440*18mm 1250*2500*18mm | Glue | Dynea Phenolic WBP Glue | |||||
ON. | Property | Unit | Standard | Value of Test | Result | |||
1 | Moisture Content | % | EN 322 | 8 | pass | |||
2 | Thickness Tolerance | mm | ±0.5 | ≤±0.3 | pass | |||
3 | Glue Bond Strength | Single Test Bond Strength Value | Mpa | EN 314 | Max. | 3.58 | pass | |
Min. | 2.86 | pass | ||||||
Average Wood Failure | % | / | 95 | pass | ||||
4 | Bending Strength | Longitudinal | Mpa | EN 310 | 63.22 | pass | ||
Transverse | 52.18 | pass | ||||||
5 | Elastic Modulus | Longitudinal | Mpa | 8348 | pass | |||
Transverse | 6405 | pass | ||||||
6 | Density | kg/cbm | EN 323 | 570 | pass | |||
7 | Cycle Life | 15-30 reusing times decided by the usage (cleaning and storing after each time using) | ||||||
Product advantage:
Compared with the four-star products, the glue is upgraded to dynea WBP phenolic glue, and import dynea film,and the waterproof and moisture-proof efficiency is upgraded and more environmentally friendly and durable. The surface covered with tel film can provide more waterproof, non-slip and other characteristics, and the number of reusable times can be increased to 15-30 times by three hot pressing.
