TEMPLATE SYSTEM

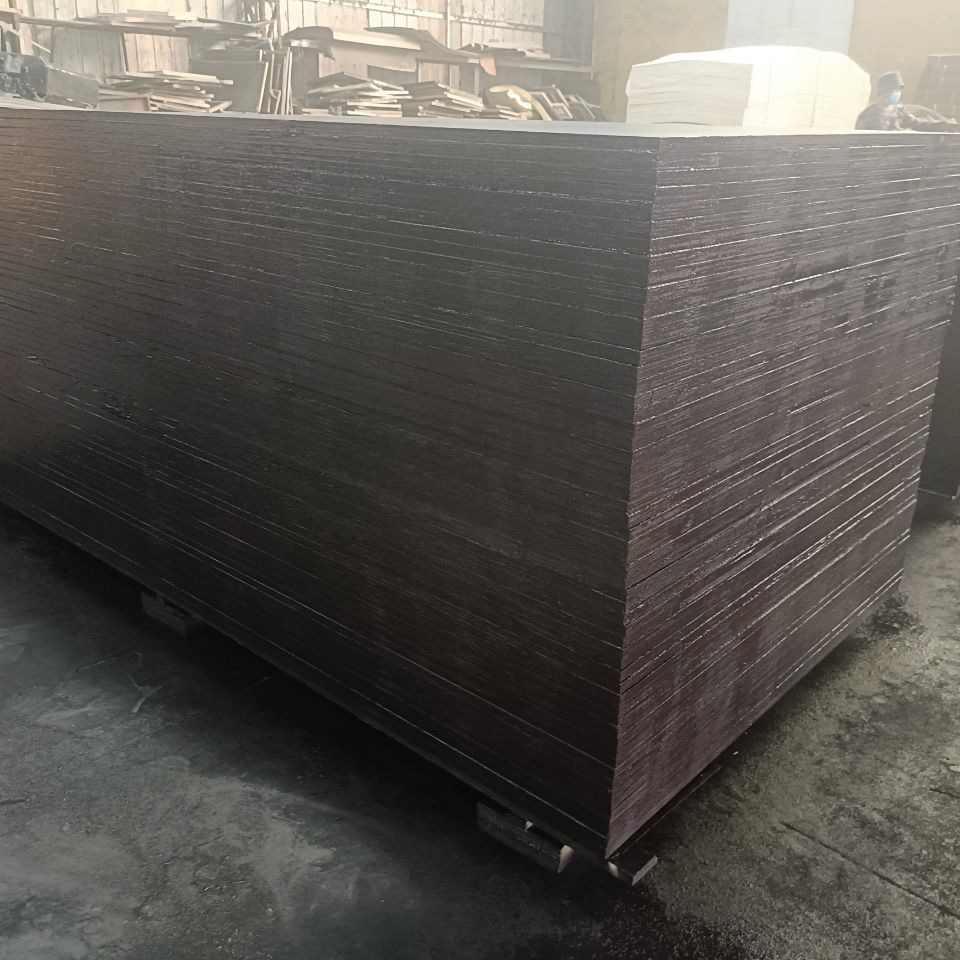

CONSMOS 2 STAR FILM FACE PLYWOOD
Product | Film faced plywood | Core | High grade finger joint recycled core | |||||
Film | Brown/Black/Red | Film Grammage | 220g/m2 | |||||
Size | 1220*2440*18mm | Glue | WBP Melamine | |||||
ON. | Property | Unit | Standard | Value of Test | Result | |||
1 | Moisture Content | % | EN 322 | 10 | pass | |||
2 | Thickness Tolerance | mm | ±0.5 | ≤±0.5 | pass | |||
3 | Glue Bond Strength | Single Test Bond Strength Value | Mpa | EN 314 | Max. | 2.79 | pass | |
Min. | 1.83 | pass | ||||||
Average Wood Failure | % | / | 85 | pass | ||||
4 | Bending Strength | Longitudinal | Mpa | EN 310 | 57.68 | pass | ||
Transverse | 46.79 | pass | ||||||
5 | Elastic Modulus | Longitudinal | Mpa | 7852 | pass | |||
Transverse | 5943 | pass | ||||||
6 | Density | kg/cbm | EN 323 | 560 | pass | |||
7 | Cycle Life | 3-6 reusing times decided by the usage (cleaning and storing after each time using) | ||||||
Product advantage
This product after the sanding and greasy repair, the surface is more flat.The use of WBP glue, can be used outdoors for a long time, waterproof, moisture resistance is stronger, can be reused more times
