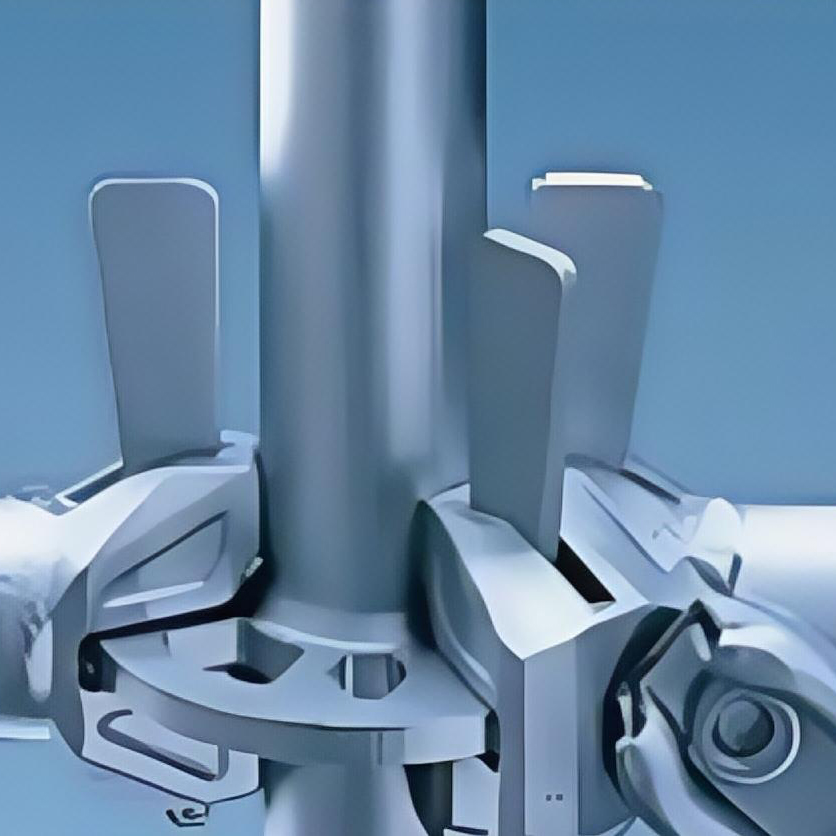

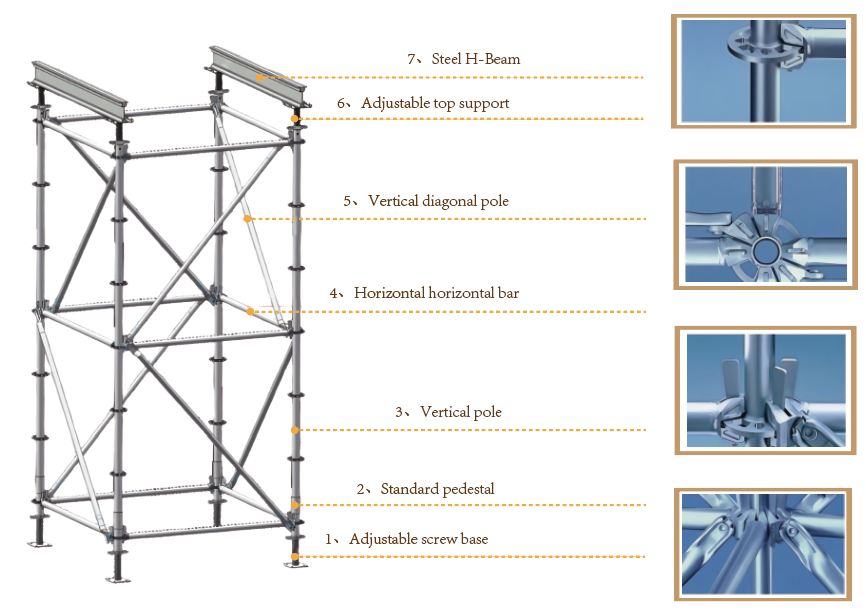

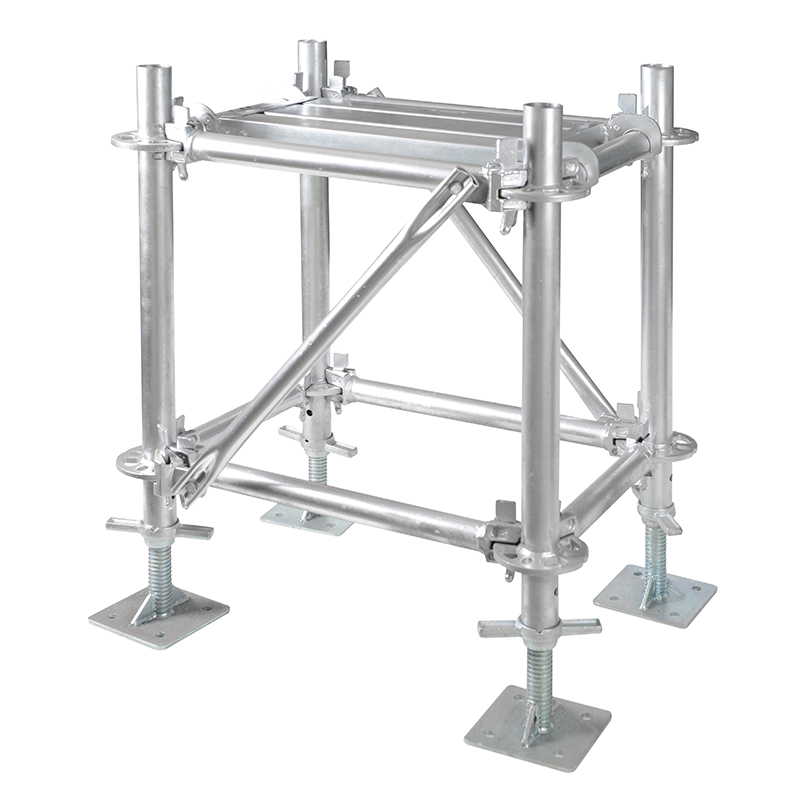

Coil buckle steel pipe support is composed of vertical rod, horizontal rod, inclined rod, adjustable base and adjustable bracket. In practice, the neutral rod is connected by casing socket, the horizontal rod and the inclined rod are connected by wedge pins and the rod end and joint are stuck into the connecting disc, forming a steel pipe support with the structure geometry unchanged system. Compared with the door type and the bowl type, the disc buckle type steel pipe is more advanced, the length of a single rod is generally not more than 2 meters, the construction process is safer, the rod size is fixed modulus, spacing, step length is fixed easier to operate, the hook type steel springboard supporting the scaffold is directly connected to the cross bar, the horizontal protection performance is better, the surface is hot dip galvanized treatment, not easy to drop paint, rust, more beautiful, Horizontal and vertical, no scattered accessories, in addition, the disc buckle scaffold can be set up template bracket, external frame, all kinds of operation frame, ladder, safety channel and other safer.

Product size

	LENGTH	PIPE DIAMETER	WALL THICKNESS	MATERIAL
STANDPIPE	500MM、1000MM、1500MM、 2000MM、2500MM、3000MM	60MM	3.2MM	Q345B high strength carbon alloy steel
CROSS BAR	300MM、600MM、900MM、 1200MM、1500MM、1800MM、 2400MM、3000MM	48MMM	2.75MM
DIAGONAL TIE	1.5M、2M	42.8MM	2.5MM

Product advantage

1.High security

Disc buckle scaffold adopts hot dip galvanizing treatment, with strong adhesion, long service life, uniform coating and other characteristics, can effectively prevent corrosion and rust, to ensure the long-term stable use of scaffolding

2.Strong carrying capacity

The bearing capacity of the vertical pole of disk-buckle scaffold is up to 200KN, which is much higher than that of traditional scaffold, and can meet the needs of high-strength construction . It is made of Q345B low-carbon alloy structural steel with higher strength and durability

3.Easy to install

The installation of disc buckle scaffold mainly relies on shaped components and bolts. The operation is simple. A person can complete the installation and disassembly with a tool hammer, which greatly improves the construction efficiency

4.Wide range of application

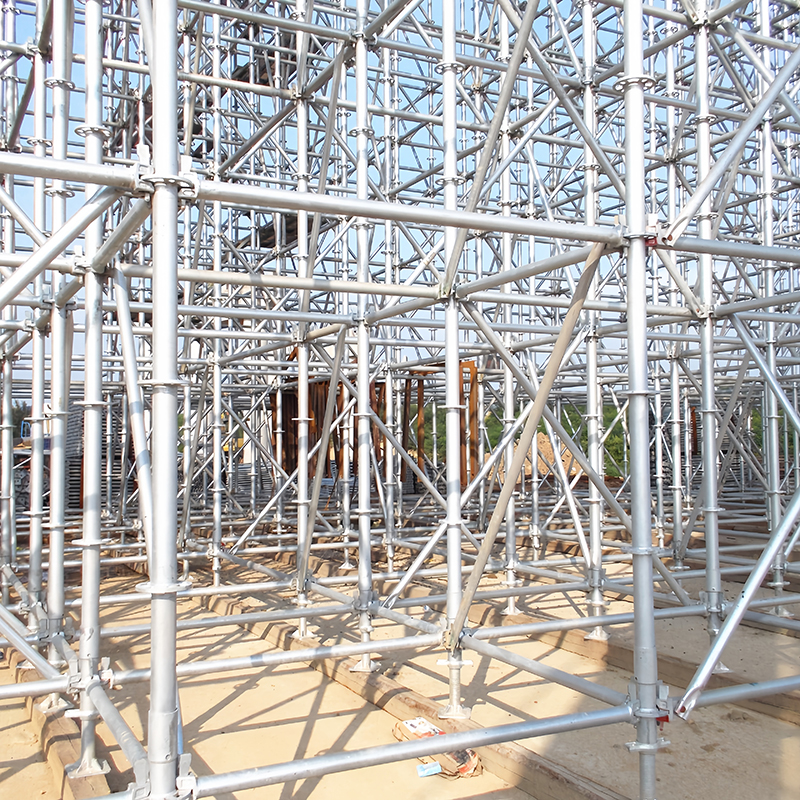

Disk-buckle scaffold is suitable for a variety of construction scenes, including bridge support, stage support, light tower, bridge pier safety ladder and other forms, can meet diverse construction needs
