STEEL SUPPORT SYSTEM

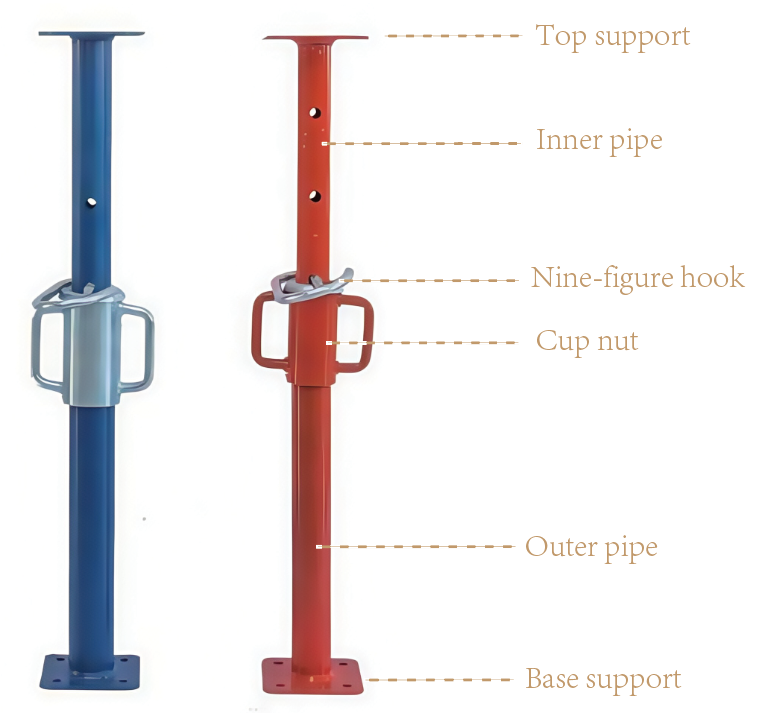

Cup steel support
The cup steel support is a widely used support structure in the construction field, the name cup comes from the similar "cup ears" design on both sides of the column, which is conducive to daily carrying and handling. The whole cup steel support is made of high-quality steel, with a high strength-to-weight ratio, which can reduce the weight while ensuring the strength of the support, which is conducive to reducing the overall load of the building, in addition, through special coating treatment, the cup steel support also has good fire performance.
Usable height
Minimum height | Maximum height |
600MM | 1100MM |
800MM | 1400MM |
1600MM | 2900MM |
1800MM | 3200MM |
2000MM | 3600MM |
2200MM | 4000MM |
Pipe diameter and thickness
Pipe diameter | Pipe thickness |
Inner pipe:40mm-48mm Outer pipe:48mm-56mm | 2MM |
Product advantage
1.High strength and wear resistance
2.Good toughness
3.Design flexibility
4.Easier construction and maintenance
