TEMPLATE SYSTEM

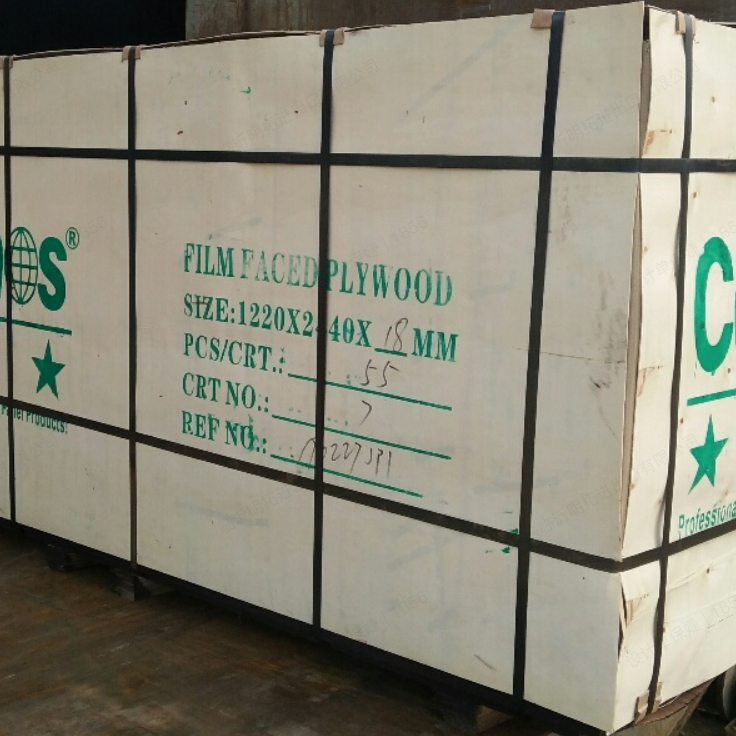

CONSMOS 4 STAR FILM FACE PLYWOOD
Product | Film faced plywood | Core | Poplar/Eucalyptus | |||||
Film | Brown/Black/MDO | Film Grammage | 180g/m2 | |||||
Size | 1220*2440*18mm 1250*2500*18mm | Glue | WBP Melamine | |||||
ON. | Property | Unit | Standard | Value of Test | Result | |||
1 | Moisture Content | % | EN 322 | 8 | pass | |||
2 | Thickness Tolerance | mm | ±0.5 | ≤±0.3 | pass | |||
3 | Glue Bond Strength | Single Test Bond Strength Value | Mpa | EN 314 | Max. | 3.36 | pass | |
Min. | 2.53 | pass | ||||||
Average Wood Failure | % | / | 92 | pass | ||||
4 | Bending Strength | Longitudinal | Mpa | EN 310 | 62.20 | pass | ||
Transverse | 50.38 | pass | ||||||
5 | Elastic Modulus | Longitudinal | Mpa | 8105 | pass | |||
Transverse | 6273 | pass | ||||||
6 | Density | kg/cbm | EN 323 | 540 | pass | |||
7 | Cycle Life | 10-20 reusing times decided by the usage (cleaning and storing after each time using) | ||||||
Product advantage:
This product has been hot pressed twice, and the use of new poplar or mixed core (combi) core, after sanding, not only the surface is more flat, the internal texture is more solid, and the strength is increased at the same time to meet the product requirement of more repeated times.
