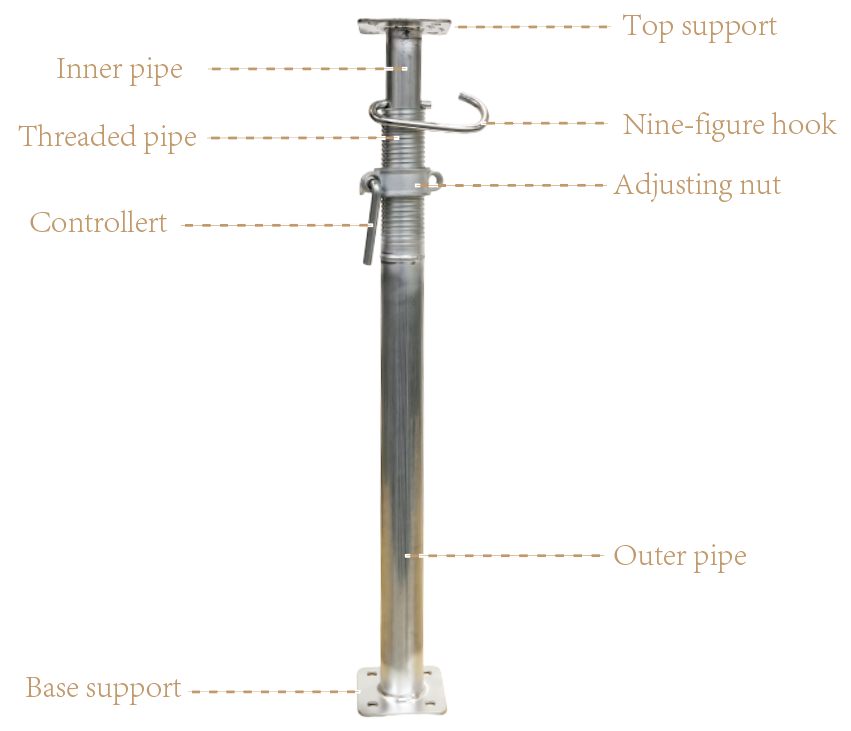

The difference between the Middle East steel support and the cup steel support is that the adjusting nut can be adjusted up and down on the threaded pipe through the handle, and the size can be fine-tuned according to the specific needs in actual use, and the adaptability is stronger. The function principle of the Middle East steel support is mainly to improve the stability of the building structure by changing the stress state of the supporting structure, and the support can effectively disperse the load and reduce the structural deformation, so as to ensure the stability of the building structure.

Usable height

Minimum height	Maximum height
1600MM	2900
1800MM	3200
2000MM	3600
2200MM	4000
3000MM	5000
3500MM	6000

Pipe diameter and thickness

Pipe diameter	Pipe thickness
Inner pipe:48mm Outer pipe:60mm	2MM

Product application

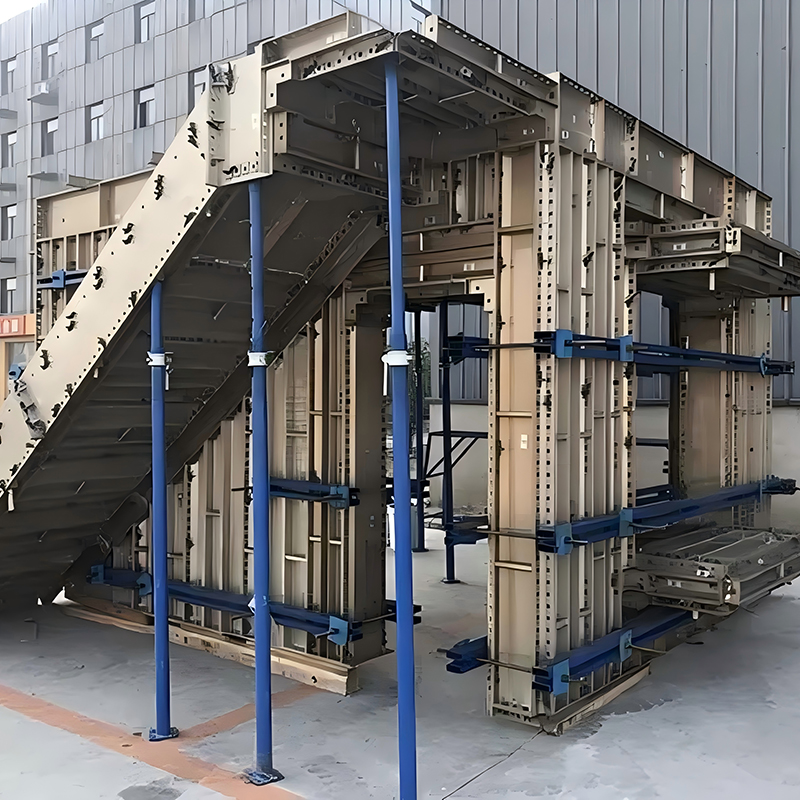

1.High-rise buildings: Independent steel supports can be applied to the frame structure of high-rise buildings, by adjusting the support Angle and position, effectively disperse and disperse the load, improve the stability of high-rise buildings.

2. Bridge: In bridge construction, independent steel supports can be used in bridge piers and bridge floor support structures to effectively improve the bearing capacity and seismic performance of the bridge.

3. Tunnel: In tunnel construction, independent steel supports can be used in tunnel supporting structures to effectively prevent tunnel deformation and collapse.
