i-beam

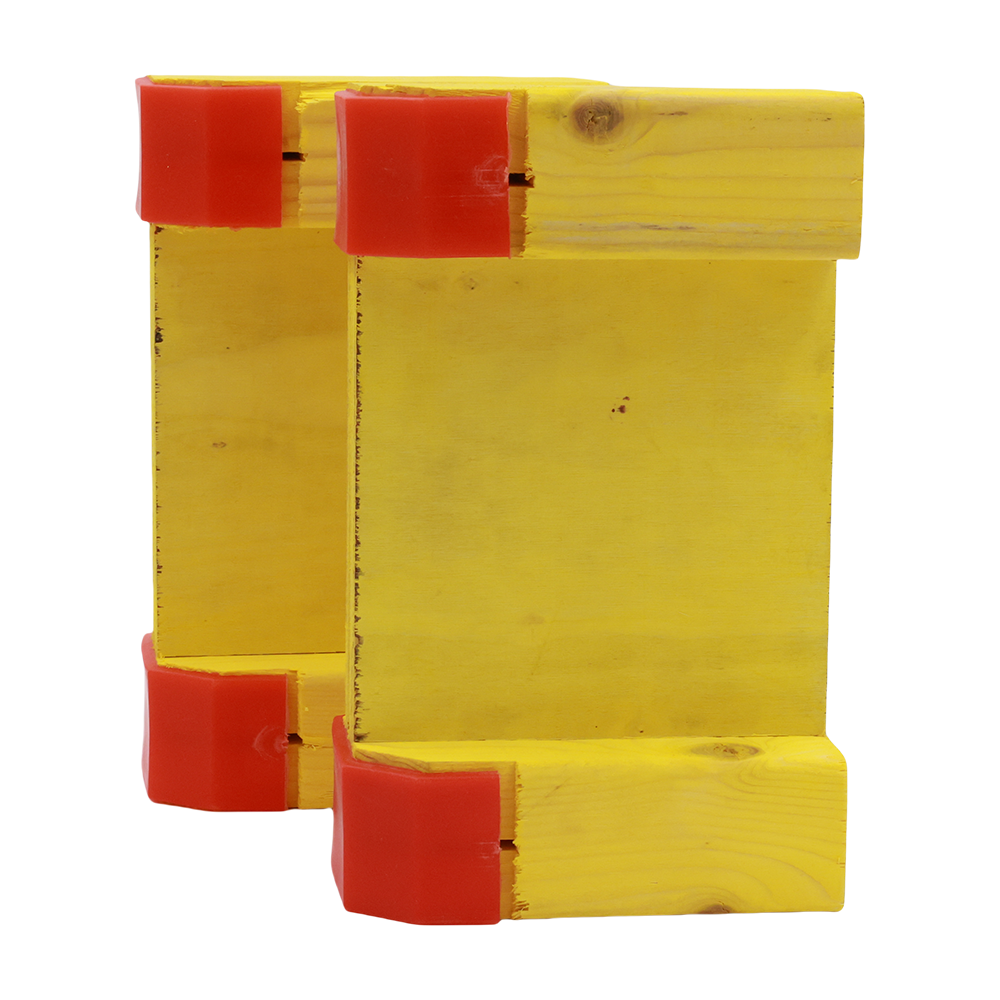

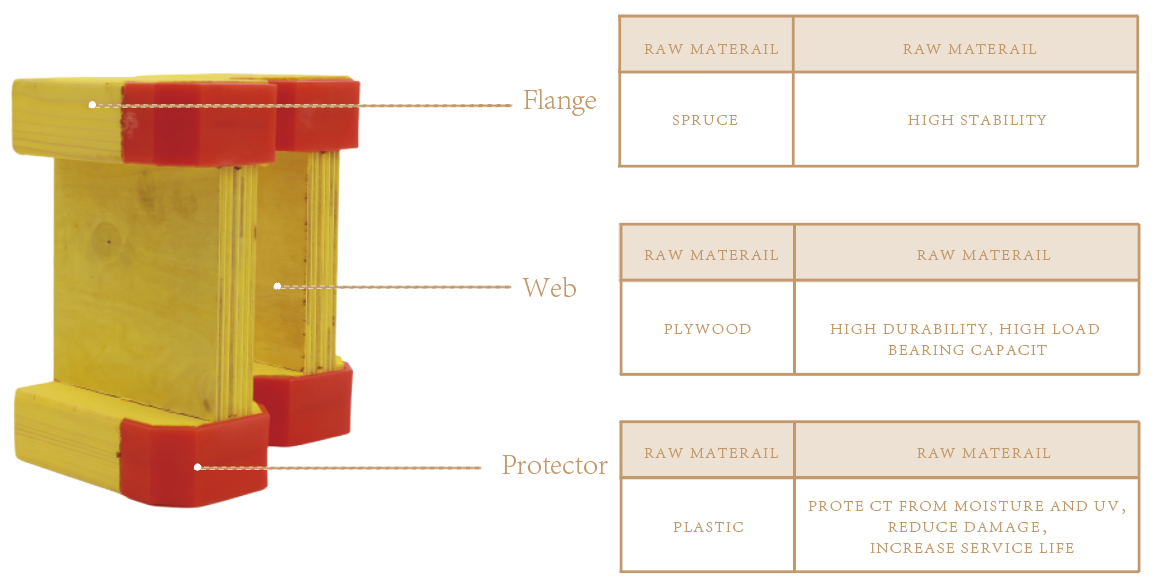

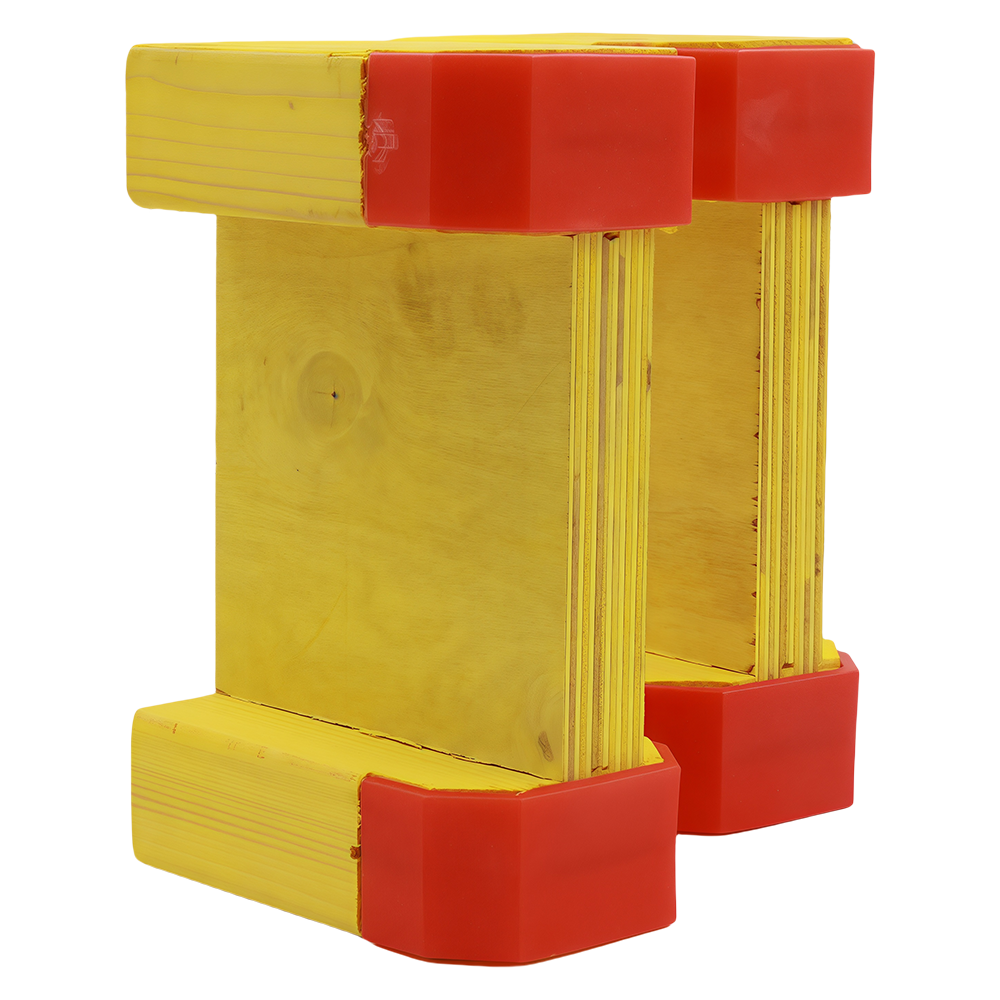

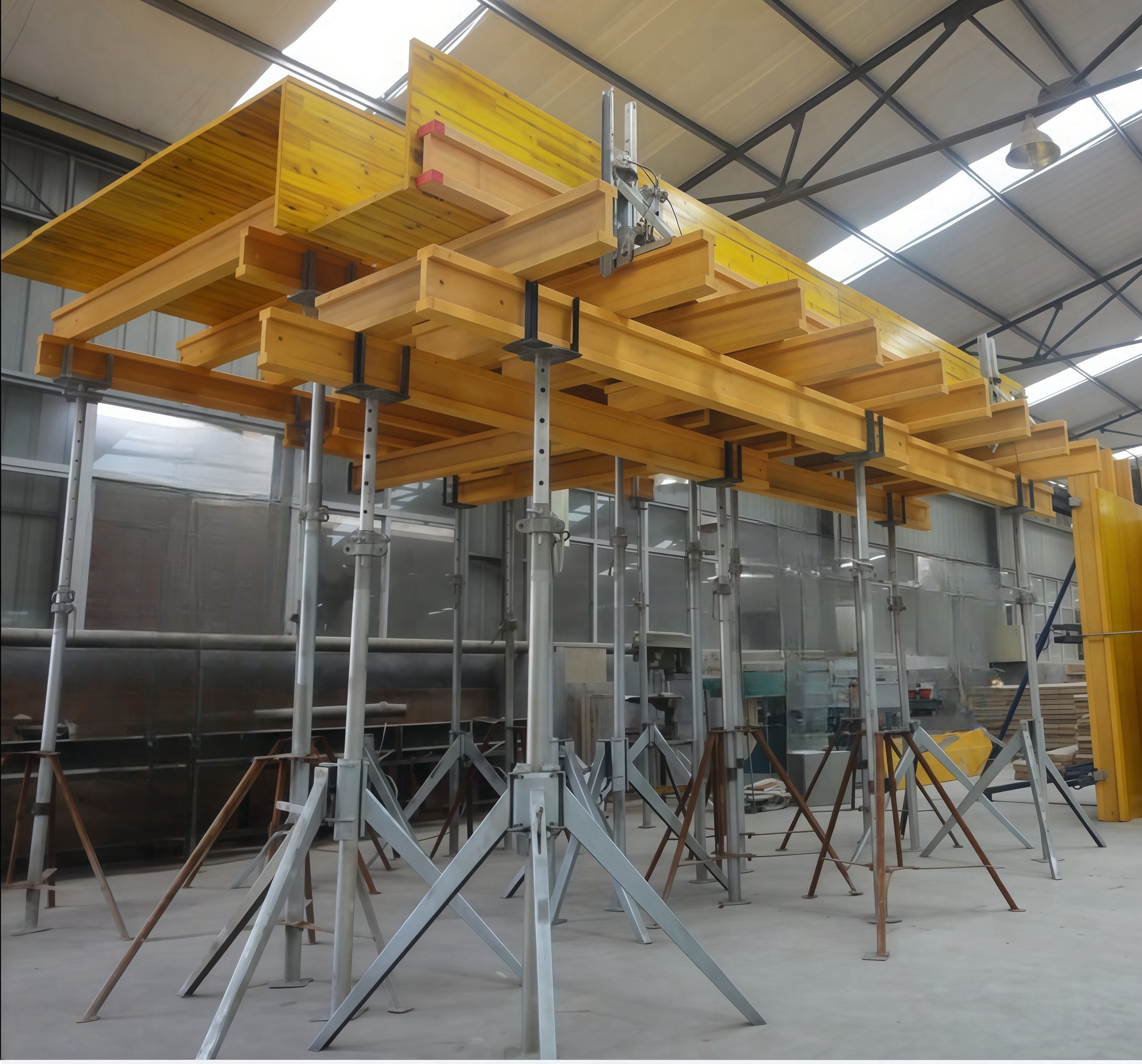

TIMBER H BEAM is an important part of the international common building formwork system, used as the main beam or the secondary beam of the concrete roof, can also be used as the support of the wall formwork system, combined with the formwork to form a complete formwork system, mainly used to achieve the wooden structure roof, it has light weight, high strength, good straightness, not easy to deformation, surface water resistance and acid and alkali resistance.
Model number | BEAM HEIGHT | FLANGE | THICKNESS |
H16 | 160MM | 65MM | 35MM |
H20 | 200MM | 80MM | 40MM |
H24 | 240MM | 80MM | 40MM |
Surface protection
The TIMBER H BEAM surface is covered with yellow waterproof paint, which not only provides a durable and smooth surface, but also extends the service life of moisture and water resistance.
